VFX100 U


This is a three-sided format with two internal corners (U-Shape), enabling a greater screen area to be created and suitable for larger application and virtual studios, giving added versatility and an enlarged visual area.

Each face is produced to the required dimensions between and either side of the corners. A VFX fitted screen is used with sectional, fabric infinity cove sections following the baseline of the framework. The cove consists of two corner sections with straight sections and two returns either side.

These are secured to the VFX framework with demountable angle brackets. The floor area is covered with loose lay VFX PVC flooring, which is then tucked under the leading edge of the cove to form a seamless transition from screen to floor. This system is supplied with all fixtures and fittings as required to secure to an adjacent wall or structure. Should your structure need to be totally free-standing, additional stabilisers and weight bags can also be supplied.

VFX100 L


A two-sided structure with one internal corner (L-Shape), enabling greater use of the studio space, each leg can extend either side of the corner as required, in this instance a VFX fitted screen is used.

In this format a fabric covered infinity cove is incorporated following the baseline of the framework. The cove consists of a solid faced corner section with straight sections to complete either side. These are secured to the VFX framework with demountable angle brackets.

The floor area is then covered with a colour-matched, loose lay VFX PVC flooring. This is tucked under the leading edge of the cove to form a seamless transition from screen to floor. This system is supplied with all fixtures and fittings required to secure to an adjacent wall or structure. Should your structure need to be free-standing, additional stabilisers and weight bags can also be supplied.

VFX100 F


This consists of a rectangular frame (Flat) with an internal fitted VFX or wrap-around VFX screen. Both options can be free-standing or wall-mounted.

In this format a fabric covered infinity cove is incorporated following the baseline of the framework. These are secured to the VFX framework with demountable angle brackets.

The floor area is then covered with a colour-matched, loose lay VFX PVC flooring. This is tucked under the leading edge of the cove to form a seamless transition from screen to floor. This system is supplied with all fixtures and fittings required to secure to an adjacent wall or structure. Should your structure need to be free-standing, additional stabilisers and weight bags can also be supplied.

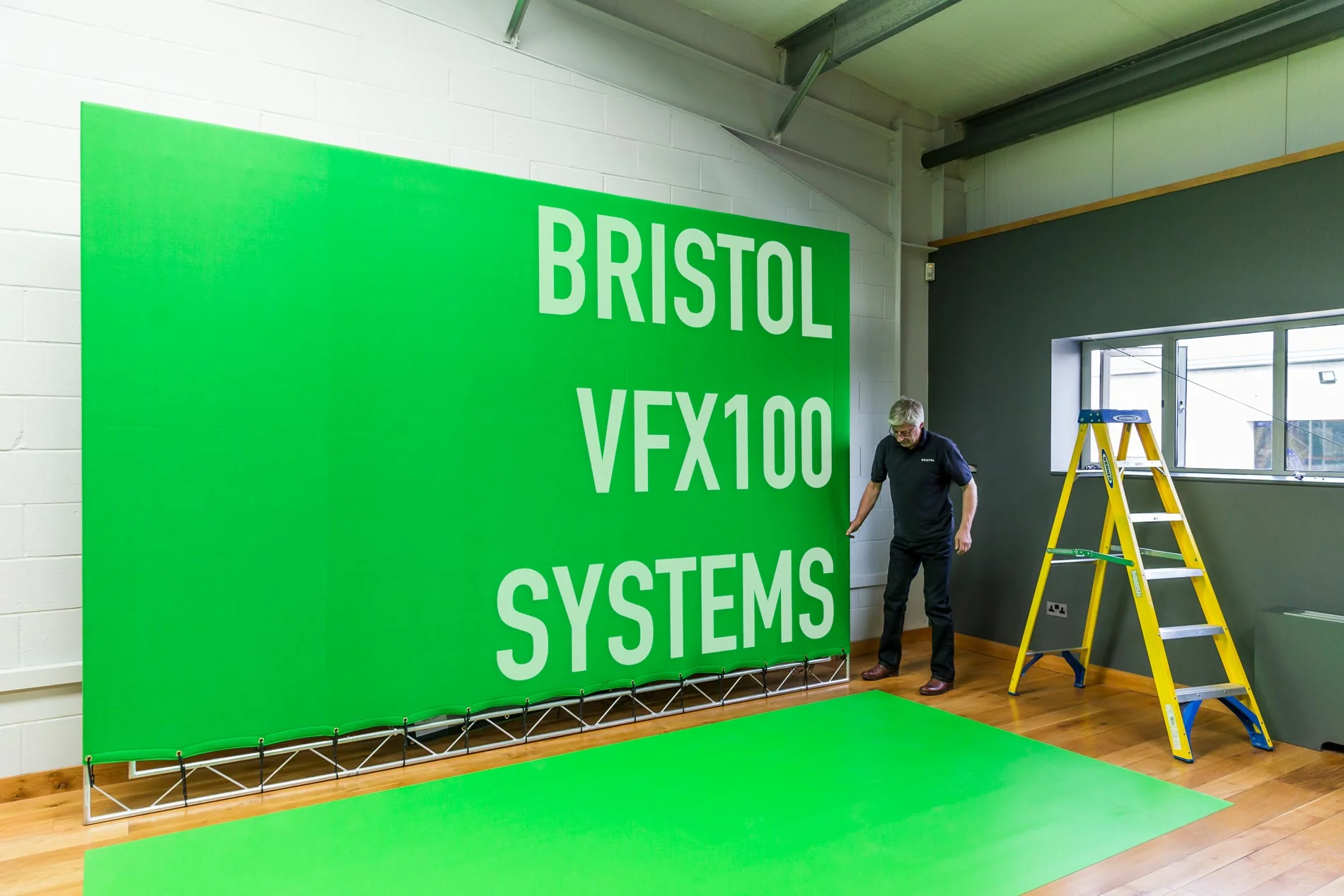

VFX100


This consists of a rectangular frame with an internal fitted VFX or wrap-around VFX screen. Both options can be free-standing or wall-mounted.

In this format a fabric covered infinity cove and PVC flooring are not used.

This system is supplied with all fixtures and fittings required to secure to an adjacent wall or structure. Should your structure need to be free-standing, additional stabilisers and weight bags can also be supplied.

BESPOKE VFX100


Should you have a requirement for a specific shape, we are able to manufacture a bespoke VFX100 in all shapes and sizes, accommodating almost all studio configurations that are presented to us.

Bristol VFX recommends a site survey be undertaken for the more complex structures to ensure correct dimensions and to ensure there are no unseen problems or costs that might delay or affect the installation and implementation.

Site survey and installation services available, call 01923 779333 for more information.

Features Overview


Bristol VFX has developed this professional range of VFX frame systems to suit almost any situation where a green or blue background is required. All our systems are designed to be disassembled, strong, highly durable and easily adapted or tailored to fit your specific requirements.


All screens are made from Bristol VFX industry renowned, durable, anti crease, brushed matt fabrics. Bristol supplies to most major film products in the UK, serving all key studios, making Bristol the professionals’ choice!


Semi-permanent, demountable, modular screening system such as the VFX100 and 200, incorporates a self-supporting or wall-mounted frame, complete with fitted screen, integrated colour matched cove and PVC flooring. Available in a wide range of formats and infinitely sized to nearest 100mm. Max height of 3m for the VFX100 and 10m for the VFX200.


Professional lighting solutions can also be supplied, Bristol works closely with Photon Beard and other light manufactures. Creating a full turnkey VFX green or blue screen studio environment.
